Microfluidic mold catalogue
An ever-expanding selection of off-the-shelf molds for microfluidic chip fabrication. Easy to use and suitable for the fabrication of hundreds of microfluidic chips!
Straight channels​
​
Suitable for applications such as microfluidic fluid dynamics monitoring, flow chemistry, fluid flow control etc.
​
Features three channels: 200 x 200 um, 500 x 500 um and 1 x 1 mm
​
Order code: EMC-001
​
Price: 110 € (+ VAT and shipping)
Cross​
​
Suitable for applications such as mixing, flow chemistry, liquid manipulation etc.
​
Features three inlets intersecting in a cross shape, followed by an outlet.
​
Order code: EMC-002
​
Price: 120 € (+ VAT and shipping)
H-channel​
​
Suitable for applications such as mixing, diffusion studies, flow chemistry, extractions etc.
​
Features four inlet/outlet ports, H-shaped channels.
​
Order code: EMC-003
​
Price: 120 € (+ VAT and shipping)
Meander​
​
Suitable for applications such as mixing, in-flow reactions, cultivations, incubations etc.
​
Features two inlet and one outlet port with a meander in between. Meander length is 29,5 cm and it's volume is 17,5 uL.
​
Order code: EMC-004
​
Price: 130 € (+ VAT and shipping)
T-junction droplet generator
​
Suitable for generation of large droplets in viscous liquids, mixing etc.
​
Features two inlet and one outlet port with a T-junction in between.
​
Order code: EMC-005
​
Price: 110 € (+ VAT and shipping)
Droplet generator
​
Suitable for generation of large droplets in viscous liquids, mixing etc.
​
Features two inlet and one outlet port with a X-junction in between.
​
Order code: EMC-006
​
Price: 110 € (+ VAT and shipping)

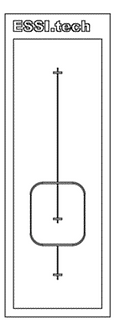

Reactor​
​
Suitable for microfluidic bioprocessing and cell cultivations, microscoping, flow chemistry etc.
​
Features two inlet and one outlet port with a wide and shallow reactor vessel in between.
​
Order code: EMC-007
​
Price: 140 € (+ VAT and shipping)
Four reactors​
​
Suitable for microfluidic bioprocessing and cell cultivations, flow chemistry etc.
​
Features four equal reactors with two ports and a reactor vessel in between.
​
Order code: EMC-008
​
Price: 140 € (+ VAT and shipping)
Liquid separator​
​
Suitable for the separation of immiscible liquids and immersed solids with different densities. Separation is gravity-driven. Suitable for the separation ratio between 20 an 30 %. The resulting chip is to be used in vertical position.​
​
Features one inlet port, separation chamber and two balanced outlets.
​
Order code: EMC-009
​
Price: 140 € (+ VAT and shipping)
Cell separator​
​
Suitable for the separation of cells, whole blood and other particles with different densities. Separation is centrifugal force-driven - high flow rates are required.
​
Features one inlet port, separation channel and two balanced outlets.
​
Order code: EMC-010
​
Price: 140 € (+ VAT and shipping)
